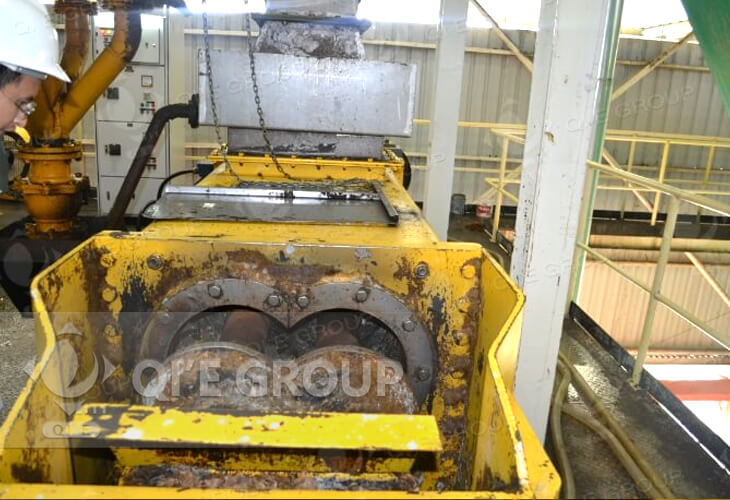

Double screw palm oil press machines usually used in large, medium and small scale palm oil mill for oil extraction with fresh palm fruits. The most common processing capacity is 3tph, 5tph, 15tph. As for the special processing capacity, we can customize it for you.
Specification parameters of 15tph screw palm oil press machine：
Model : QIE15T/C(SG)
Type: Horizontal Double Worm Screw
Capacity: 15 tons FFB/hour
Operating Speed: Approx. 10.5 rpm
Motor: 30 kW, 4 Poles, IP 55, class F, 1450 rpm, 380-415V,
3 phase, 50Hz, TEFC squirrel cage motor.
Gear reducer: SEW M3PSF50SPD
Power rating = 60kW, nominal torque rating = 45,000Nm
Service Factor: Minimum 1.5
Pulley & Belt: 4 SPB with taper lock bushes.
Hydraulic: Rexroth automatic cone control system RRCS-2D-15
